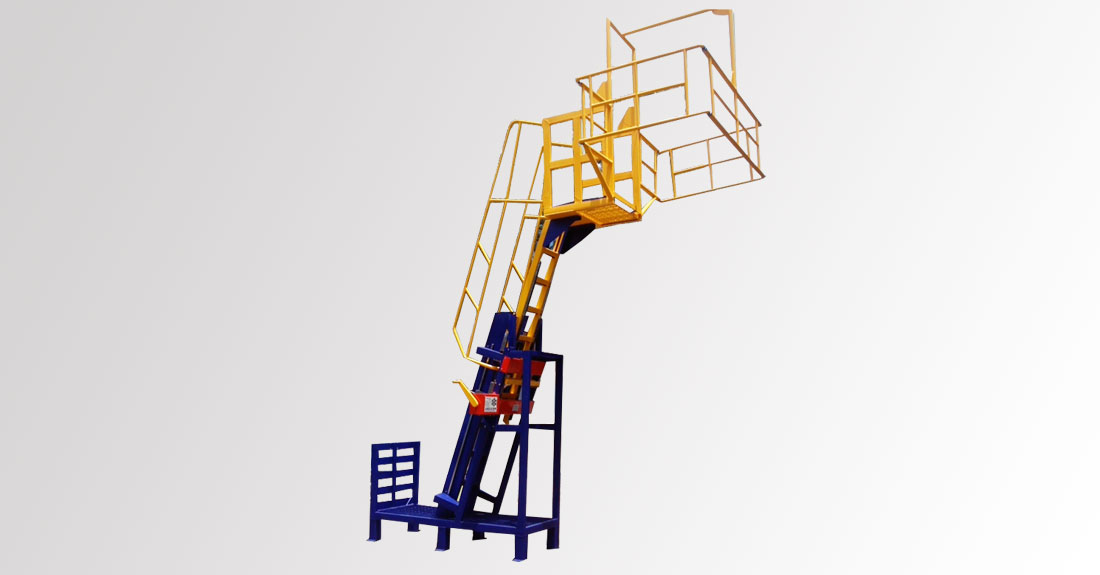

FIXED TANKER PLATFORM
PRODUCT DESCRIPTION:
Tanker Platform Trolley is specifically designed for the purpose of Sampling, Loading, Unloading, Inspection, Venting and Hoses connection.This trolley is fixed at one place where the tanker is moved in front of trolley for working and after work tanker is moved away.
This Trolley can be used suitably with vehicles like Chemical Tankers, Petroleum Tankers, Milk Tankers and Liquid tankers.
We have designed the Tanker Platform Trolley while taking care of all the safety views of our valuable customers.
PRODUCT DETAILS: |
| LOAD CARRYING CAPACITY |
1 PERSON |
| LENGTH ( MAXIMUM) |
4600MM |
| WIDTH ( MAXIMUM) |
3000MM |
| HEIGHT ( MINIMUM) |
4450MM |
| HEIGHT ( MAXIMUM) |
5600 MM |
| BASE FRAME |
2000x750 MM |
| CLOSED HEIGHT |
2400MM |
| OPEN HEIGHT |
3600MM |
| TOP RAILING SIZE |
2167MM |
| TOP RAILING SIZE |
3000MM |
Features:
- Trolley can be handled easily by single operator.
- Safety cage allows safe working.
- Base frame is bolted with anchor bolts in ground.
- S.S. hardware to withstand corrosive atmosphere.
- Gear box with brake allows easily raising and lowering of platform.
- Height adjustment from 2.4 Metre. to 3.6 Metre for STD trolley.
- Height adjustment from 3.1 Metre. to 4.5 Metre for ISO trolley.
- Top Railing size adjustment from 2.2 Metre. To 3.0 metre for STD trolley.
- Top Railing size adjustment from 3.2 Metre. To 5.0 metre for ISO trolley.
- Sturdy Design.
- Tanker Platform Trolley does not required resting on the vehicle for support.
- Customised design.
- Height Adjustment facility.
- Optimum strength.
- Rugged design.
- Low maintenance.
Application Areas:
-
For usage in Chemical Industries, Petrochemical Industries, Pharmaceutical Industries, Agricultural Industries and similar Industries.
